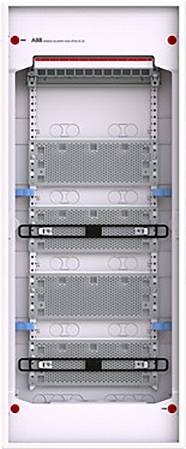

Striebel & John 2CPX031813R9999 AK660M Switchboard cabinet Surface-mount No. of partitions = 12 No. of rows = 5 Content
Product type
Switchboard cabinet
No. of partitions
12
No. of rows
5
Mounting type
Surface-mount
Width
339 mm
EAN:
Part number:
Item no:
Technical specifications
- Height: 828 mm
- Width 339 mm
- Depth: 99 mm
- With mounting plate: Yes
- Mounting depth: 58 mm
- Mounting option: Yes
- Mounting type: Surface-mounted
- Colour: white
- RAL number: 9016
- Protection class (IP): Other
- Mounting width 255 mm
- Mounting height 781 mm
- Type of cover: Cover
- Lid design: With cut-out
- Transparent cover / door: No.
- With lock: No.
- Internal depth 83 mm
- Number of rows: 5
- Width in division units: 12
- Housing material: Plastic
- EMC type: No.
- Door transmitting the signal: No.
- Type of closure: Push-button
- Earth terminal block: No.
- Neutral conductor terminal block: No.
- DIN rail: Yes
- UV-resistant: No.
- Product type
Switchboard cabinet
- No. of partitions
12
- with PE and N terminals
No
- No. of rows
5
- Mounting type
Surface-mount
- Width
339 mm
- Height
828 mm
- Dim
(W x H x D) 339 x 828 x 99 mm
- Depth
99 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549961 Striebel & John 2CPX031813R9999 AK660M Switchboard cabinet Surface-mount No. of partitions = 12 No. of rows = 5 Content
Description
The AK600 series media distributors are designed for surface mounting. They impress with many new and unique technical features. An up to 133% larger connection area thus enables the simple and efficient installation. Through the generous space, all thinkable devices, such as routers or other media components, find their safe place. Modular perforated metal mounting plates make device easy to install, and an integrated 3-way rotating socket ensures power supply. A 12-fold patch panel offers adequate space for Keystone or E-DAT modules. Clever details like the cable holding rail and an integrated terminal intake underline the high flexibility of the distributor. The distribution units have a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24
