Striebel & John 2CPX032564R9999 AK624N3 Switchboard cabinet Surface-mount No. of partitions = 12 No. of rows = 2 Content
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
12
No. of rows
2
Mounting type
Surface-mount
Width
339 mm
Technical specifications
- Height: 453 mm
- Width 339 mm
- Depth: 99 mm
- With mounting plate: No.
- Mounting depth 55 mm
- Mounting option: Yes
- Mounting type: Surface-mounted
- Colour: white
- RAL number: 9016
- Protection class (IP) IP30
- Mounting width 255 mm
- Mounting height 406 mm
- Type of cover: Cover
- Lid design: With cut-out
- Transparent cover / door: No.
- With lock: No.
- Internal depth 55 mm
- Number of rows: 2
- Width in division units: 12
- Housing material: Plastic
- EMC type: No.
- Door transmitting the signal: No.
- Type of closure: Push-button
- Earth terminal block: Yes
- Neutral terminal block: Yes
- DIN rail: Yes
- UV-resistant: No.
- Product type
Switchboard cabinet
- No. of partitions
12
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
Surface-mount
- Factory colour
Multicolour
- Width
339 mm
- Height
453 mm
- Dim
(W x H x D) 339 x 453 x 99 mm
- Depth
99 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547830 Striebel & John 2CPX032564R9999 AK624N3 Switchboard cabinet Surface-mount No. of partitions = 12 No. of rows = 2 Content
Description

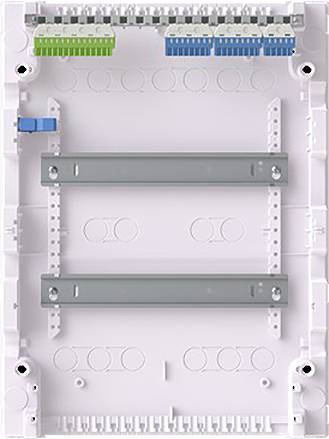

The AK600 series of circuit distributors are designed for surface mounting. They impress with many new and unique technical features. An up to 133% larger connection area thus enables the simple and efficient installation of the DIN-rail mounted devices. The removable DIN rails can be placed in the distributor depending upon the requirement and thus also guarantee an easy installation. Clever details such as the cable holding rail and an integrated clamping menu underline the high flexibility of the distributor. The distribution units have a VDE mark. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24
