Striebel & John 2CPX034042R9999 KA4619 Meter box Recess-mount No. of partitions = 24 No. of rows = 0
EAN:
Part number:
Item no:
Product type
Meter box
No. of partitions
24
No. of rows
0
Mounting type
Recess-mount
Width
24 mm
Datasheet (PDF)
Technical specifications
- Product type
Meter box
- No. of partitions
24
- No. of rows
0
- Mounting type
Recess-mount
- Factory colour
Grey
Grey-white (RAL 7035)
- Width
24 mm
- Height
1050 mm
- Dim
(W x H) 24 mm x 1050 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2325248 Striebel & John 2CPX034042R9999 KA4619 Meter box Recess-mount No. of partitions = 24 No. of rows = 0
User & Safety Instructions
User & Safety Instructions 2325248 Striebel & John 2CPX034042R9999 KA4619 Meter box Recess-mount No. of partitions = 24 No. of rows = 0
Description

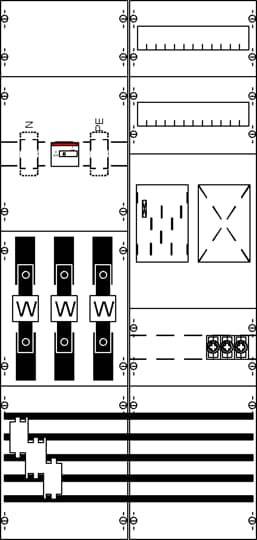

The measuring and converter fields of the KA series with eHZ mounting are intended for installation in A, U, TG and SZ cabinets. The fields are pre-wired, which ensures quick and easy installation in the cabinet. The optional busbar connector allows the cross-wiring of several fields to be realized at will. APPLICABLE STANDARDS: DIN EN 61439-1; VDE 0660-600-1, DIN EN 61439-2; VDE 0660-600-2, DIN EN 61439-3; VDE 0660-600-3.
