Striebel & John 2CPX034178R9999 KA4300 Meter box Recess-mount No. of partitions = 12 No. of rows = 0
EAN:
Part number:
Item no:
Product type
Meter box
No. of partitions
12
No. of rows
0
Mounting type
Recess-mount
Width
12 mm
Datasheet (PDF)
Technical specifications
- Product type
Meter box
- No. of partitions
12
- No. of rows
0
- Mounting type
Recess-mount
- Factory colour
Grey
Grey-white (RAL 7035)
- Width
12 mm
- Height
1050 mm
- Dim
(W x H) 12 mm x 1050 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327795 Striebel & John 2CPX034178R9999 KA4300 Meter box Recess-mount No. of partitions = 12 No. of rows = 0
User & Safety Instructions
User & Safety Instructions 2327795 Striebel & John 2CPX034178R9999 KA4300 Meter box Recess-mount No. of partitions = 12 No. of rows = 0
Description

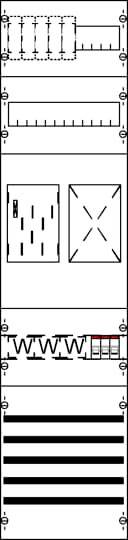

The measuring and converter fields of the KA series with eHZ mounting are intended for installation in A, U, TG and SZ cabinets. The fields are pre-wired, which ensures quick and easy installation in the cabinet. The optional busbar connector allows the cross-wiring of several fields to be realized at will. APPLICABLE STANDARDS: DIN EN 61439-1; VDE 0660-600-1, DIN EN 61439-2; VDE 0660-600-2, DIN EN 61439-3; VDE 0660-600-3.
This text is machine translated.
This text is machine translated.
