Striebel & John 2CPX035092R9999 KA4284 Meter / transformer board No. of partitions = 24 No. of rows = 0 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter / transformer board
No. of partitions
24
No. of rows
0
Width
500 mm
Height
1050 mm
Datasheet (PDF)
Technical specifications
- Product type
Meter / transformer board
- No. of partitions
24
- No. of rows
0
- Factory colour
Grey
- Width
500 mm
- Height
1050 mm
- Dim
(W x H x D) 500 x 1050 x 160 mm
- Depth
160 mm
- Content
1 pc(s)
Grey
500 mm
1-story
1050 mm
7035
FALSE
300 mm
TRUE
24
0
0
1
With bus bar 5-pole
IP2XC
125 A
Closed with prestamping
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118339 Striebel & John 2CPX035092R9999 KA4284 Meter / transformer board No. of partitions = 24 No. of rows = 0 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118339 Striebel & John 2CPX035092R9999 KA4284 Meter / transformer board No. of partitions = 24 No. of rows = 0 Content 1 pc(s)
Description

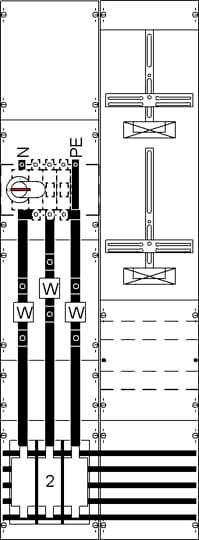

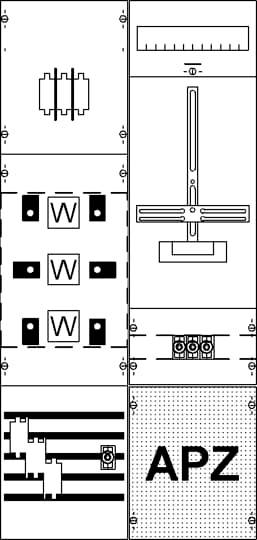

Measurement and converter field, complete panel, with counter cross, for indoor use, applicable standards: DIN EN 61439-1, VDE 0660-2-125, DIN EN 61439-600, VDE 0660-600-2, rated current In 1 A, dimensions in mm (H x W x D): 5 x 500 x 160, meter space wired, network system TN-S, 1050-pole, network-side connection area meter space: with bus bar, number of counter slots for individual tariff 1, number of SG slots 1, (300 mm), number of converter counter space 1, network-side connection space Meter space: with bus bar, wired according to the specifications of the NB, voltage path fuse base D01/3-pole and D01/1-pole, load range: Busbar Cu-rails 12 x 5 mm 5-pole, separation point in front of the converter fuse bases 1x3xNH00/125 A, converter area Converter support for roller-type supports with 130 mm hole spacing, Ritz: EKS 60-03, EKS 70-04, EKSO 63, EKSO 73, EKSO 74, MBS:EASY 31.3, EASY 31.4, EASY 31.5, EASY 41.4, EASY 41.5 (NB provision), separation point after converter lower part 1 x 3 x NH00 with connecting screws, primary wiring 70 qmm, latching unit 7 RE, installation height 3, field width 2, Space units 168, plastic covers, sealable quick release closure, RAL 7035
