Striebel & John 2CPX035696R9999 KA4202 Meter box Recess-mount No. of partitions = 24 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Meter box
No. of partitions
24
Mounting type
Recess-mount
Width
24 mm
Height
1350 mm
Datasheet (PDF)
Technical specifications
- Product type
Meter box
- No. of partitions
24
- Mounting type
Recess-mount
- Factory colour
Grey-white (RAL 7035)
Grey
- Width
24 mm
- Height
1350 mm
- Dim
(W x H x D) 24 x 1350 x 233 mm
- Depth
233 cm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324706 Striebel & John 2CPX035696R9999 KA4202 Meter box Recess-mount No. of partitions = 24 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2324706 Striebel & John 2CPX035696R9999 KA4202 Meter box Recess-mount No. of partitions = 24 Content 1 pc(s)
Description

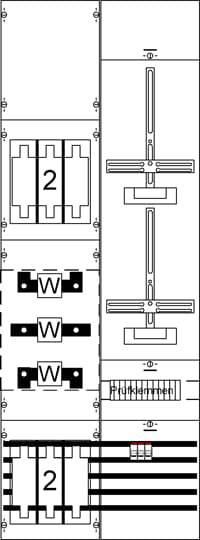

The measuring and converter fields of the KA series with three-point mounting are intended for installation in A, U, TG and SZ cabinets. The fields are pre-wired, which ensures quick and easy installation in the cabinet. The optional busbar connector allows the cross-wiring of several fields to be realized at will. APPLICABLE STANDARDS: DIN EN 61439-1; VDE 0660-600-1, DIN EN 61439-2; VDE 0660-600-2
