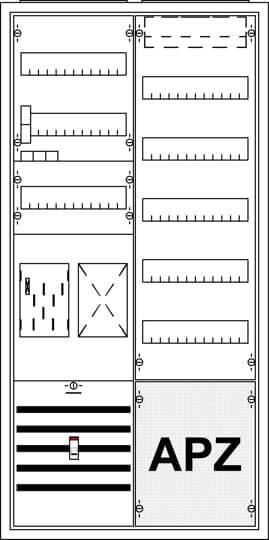

Striebel & John 2CPX035914R9999 KS782Z Meter box Surface-mount No. of partitions = 2 No. of rows = 2
Product type
Meter box
No. of partitions
2
No. of rows
2
Mounting type
Surface-mount
Width
550 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Meter box
- No. of partitions
2
- No. of rows
2
- Mounting type
Surface-mount
- Width
550 mm
- Height
1100 mm
- Dim
(W x H x D) 550 x 1100 x 215 mm
- Depth
215 mm
- Mounting
With bus bar 5-pin
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2327425 Striebel & John 2CPX035914R9999 KS782Z Meter box Surface-mount No. of partitions = 2 No. of rows = 2
Description
The complete meter cabinets of the KS series with BKE-I connection for eHZ are designed for surface and partially recessed mounting. The distribution boards are used indoors in residential, commercial and industrial buildings, for example. The housings are supplied with a door and have upper, lower and lateral cable entry options. One advantage is the wide door opening angle of 130°. Furthermore, the doors can be easily unhinged if required. Due to the flat design, the distributor integrates very well into any environment. The housings fulfill the protection class IP43 (IP31 according to DIN VDE 0603-1). Applicable standards: DIN VDE 0603-1, DIN 43870-1, color white RAL 9016 and powder coated.
