Striebel & John 2CPX037606R9999 1V02A busbar module SS system, terminals, 4RE / BH0, 1 FB Busbar module 1 pc(s)
Product type
Busbar module
Dim
(W x H x D) 250 x 600 x 120 mm
Content
1 pc(s)
Width
250 mm
Height
600 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 600
- Width 250
- With cover: Yes
- Depth: 120
- Cover type: Closed
- With N-PE terminals: No.
- Number of DIN rails: 0
- Number of division units per DIN rail: 0
- With mounting plate: No.
- Product type
Busbar module
- Dim
(W x H x D) 250 x 600 x 120 mm
- Content
1 pc(s)
- Width
250 mm
- Height
600 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328988 Striebel & John 2CPX037606R9999 1V02A busbar module SS system, terminals, 4RE / BH0, 1 FB Busbar module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2328988 Striebel & John 2CPX037606R9999 1V02A busbar module SS system, terminals, 4RE / BH0, 1 FB Busbar module 1 pc(s)
Description

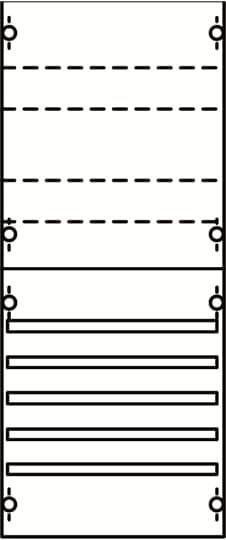

Interior expansion system, distribution panels, mounted on EDF-profile, for busbars and terminal blocks, 4 RE locking unit = 600 mm, field width 1 = 250 mm, 48 place units, with 5-pole busbar system, alignment of busbars: Horizontal, with ZB5 busbar holder, Busbar center distance: 40 mm, with 5 Cu-rails, rated current in max. 360 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, applicable from a cabinet depth of 120 mm, distribution panels or field combinations must have the same grid units as the cabinets in which they are installed. Two fields or field combinations must be installed on top of each other for standing and series cabinets. The EDF rails are included in the delivery.
