Striebel & John 2CPX037642R9999 2V3KA DIN rail mount module serial spacing 125mm, 7RE / BH3, 2FB Multi-tier rack mount p
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 500 x 1050 x 120 mm
No. of rows
4
No. of partitions
24
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 1050Width: 500With cover: YesDepth: 120Type of cover: With cut-outWith N-PE terminals: No.Number of DIN rails: 4Number of units per DIN rail: 24With mounting plate: No.
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 500 x 1050 x 120 mm
- No. of rows
4
- No. of partitions
24
- Content
1 pc(s)
- Width
500 mm
- Height
1050 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326770 Striebel & John 2CPX037642R9999 2V3KA DIN rail mount module serial spacing 125mm, 7RE / BH3, 2FB Multi-tier rack mount p
User & Safety Instructions
User & Safety Instructions 2326770 Striebel & John 2CPX037642R9999 2V3KA DIN rail mount module serial spacing 125mm, 7RE / BH3, 2FB Multi-tier rack mount p
Description

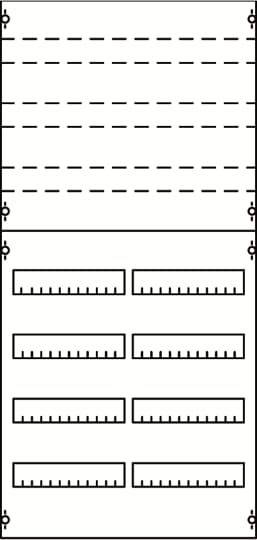

Interior expansion system, distribution panels, mounted on EDF profile, for DIN rail mounting units and terminal blocks, snap-in unit 7 RE = 1050 mm, field width 2 = 500 mm, 168 space units, row spacing: 125, removal with top hat rail 35 x 15 mm with holes for wire holder, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of cover: With cut-out, can be used from a cabinet depth of 120 mm, distribution panels or field combinations must have the same grid units as the cabinets in which they are installed. In the case of standing and series-mounted cabinets, two fields or field combinations must be installed on top of each other. The EDF rails are included in the scope of supply.
