Striebel & John 2CPX037666R9999 2V5A mounting in-line devices module serial distance 125mm, 9RE / BH5, 2FB Multi-tier ra
EAN:
Part number:
Item no:
Product type
Multi-tier rack mount panel
Content
1 pc(s)
Width
500 mm
Height
1350 mm
Depth
120 mm
Datasheet (PDF)
Technical specifications
- Product type
Multi-tier rack mount panel
- Content
1 pc(s)
500 mm
1350 mm
120 mm
FALSE
With notch
TRUE
9
24
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118368 Striebel & John 2CPX037666R9999 2V5A mounting in-line devices module serial distance 125mm, 9RE / BH5, 2FB Multi-tier ra
User & Safety Instructions
User & Safety Instructions 3118368 Striebel & John 2CPX037666R9999 2V5A mounting in-line devices module serial distance 125mm, 9RE / BH5, 2FB Multi-tier ra
Description

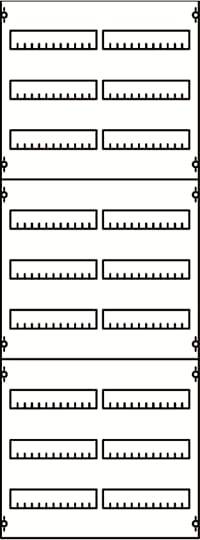

Internal expansion system, distribution panels, mounted on EDF profile, for DIN rail mounting devices, snap-in unit 9 RE = 1350 mm, field width 2 = 500 mm, 216 space units, row spacing: 125, removal with top hat profile rail 35 x 15 mm with holes for wire holder, for installation devices according to DIN 43880, plastic covers, 90 degree pressure-twist lock, RAL 7035, version of cover: with cut-out, can be used from a cabinet depth of 120 mm, distribution panels or field combinations must have the same grid units as the cabinets in which they are installed. In the case of standing and series-mounted cabinets, two fields or field combinations must be installed on top of each other. The EDF rails are included in the scope of supply.
