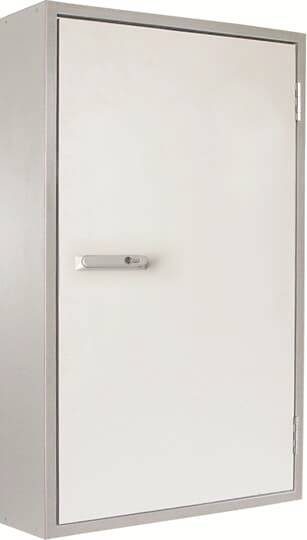

Striebel & John 2CPX040028R9999 1/2UF2020 Fire-proof wall enclosure Flush mount No. of rows = 6 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fire-proof wall enclosure
No. of rows
6
Mounting type
Flush mount
Width
332 mm
Height
40 mm
Datasheet (PDF)
Technical specifications
- Product type
Fire-proof wall enclosure
- No. of rows
6
- Mounting type
Flush mount
- Factory colour
Grey
- Width
332 mm
- Height
40 mm
- Dim
(W x H x D) 332 x 40 x 205 mm
- Depth
205 mm
- Content
1 pc(s)
Flush mounted (plaster)
II
Grey
332 mm
40 mm
205 mm
7035
FALSE
Other
138 mm
6
None
1
138 mm
E30
12
FALSE
Other
72
Single
IP41
FALSE
TRUE
FALSE
72 mm
72 mm
With notch
1
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118424 Striebel & John 2CPX040028R9999 1/2UF2020 Fire-proof wall enclosure Flush mount No. of rows = 6 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118424 Striebel & John 2CPX040028R9999 1/2UF2020 Fire-proof wall enclosure Flush mount No. of rows = 6 Content 1 pc(s)
Description
Fire protection wall cabinet, UF series, empty cabinet, installation type: In-wall, for indoor use, with door, protection class II (insulated), protection class IP41, building material according to A2 - non-flammable, tested according to DIN 4102-2, smoke-tight, fire resistance 30 min tested according to DIN 4102-1, fire-load insulation 30 min following DIN 4102-12, functional endurance 30 min following DIN 4102-11, rated operating voltage Ue 400V AC 50/60 Hz, surface-coated, IN RAL AEHNLIGHT7035, non-combustible housing, single-leaf door, non-combustible door, half-cylinder swivel lever, 180 degree door opening angle, right stop, cable entry above cable bulkhead, bottom over cable bulkhead, dimensions in mm (H x W x D): 982 x 332 x 205, snap-in unit 6 RE, height 2, field width 1, place units 72, prepared for expansion with distribution panels, combination sets, CombiLine modules on EDF assembly scaffold
