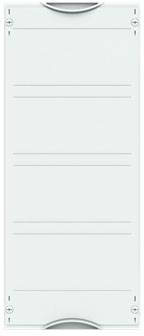

Striebel & John 2CPX041119R9999 MM114K mounting plate module 4RE / BH0, 1FB, for small distributors Mounting plates-Modu
Product type
Mounting plates-Module
Dim
(W x H x D) 250 x 600 x 120 mm
Content
1 pc(s)
Width
250 mm
Height
600 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Installation depth 120
- With mounting rail: No.
- Height: 600
- Width 250
- With cover: Yes
- Depth: 120
- With mounting plate: No.
- Product type
Mounting plates-Module
- Dim
(W x H x D) 250 x 600 x 120 mm
- Content
1 pc(s)
- Width
250 mm
- Height
600 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326786 Striebel & John 2CPX041119R9999 MM114K mounting plate module 4RE / BH0, 1FB, for small distributors Mounting plates-Modu
User & Safety Instructions
User & Safety Instructions 2326786 Striebel & John 2CPX041119R9999 MM114K mounting plate module 4RE / BH0, 1FB, for small distributors Mounting plates-Modu
Description
Interior fittings module, CombiLine, mounted in the cabinet, for mounting plate, 4 RE latching unit = 600 mm, field width 1 = 250 mm, 48 mounting units, mounting plates made of 2 mm sheet steel, fixed mounting, usable depth from 82 mm to 82 mm, usable width of 200 mm, usable height of 566 mm, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
