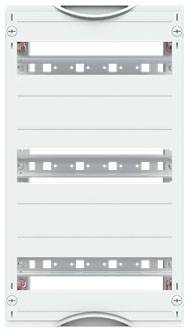

Striebel & John 2CPX041210R9999 MG413 in-line module 3RE / 1FB, 150mm in-line distance Multi-tier rack mount panel No. o
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 250 x 450 x 120 mm
No. of rows
3
No. of partitions
12
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 150
- Height: 450
- Width 250
- Depth: 120
- Number of DIN rails: 3
- Number of division units per DIN rail: 12
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 250 x 450 x 120 mm
- No. of rows
3
- No. of partitions
12
- Content
1 pc(s)
- Width
250 mm
- Height
450 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330335 Striebel & John 2CPX041210R9999 MG413 in-line module 3RE / 1FB, 150mm in-line distance Multi-tier rack mount panel No. o
User & Safety Instructions
User & Safety Instructions 2330335 Striebel & John 2CPX041210R9999 MG413 in-line module 3RE / 1FB, 150mm in-line distance Multi-tier rack mount panel No. o
Description
Interior design module, CombiLine, mounted in the cabinet, for DIN series installation devices, catch unit 3 RE = 450 mm, field width 1 = 250 mm, 36 place units, row spacing: 150, removal with 35 x 15 mm top hat profile rail with hole for wire holder, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
