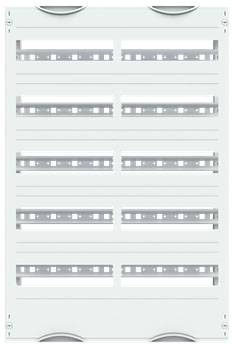

Striebel & John 2CPX041223R9999 MG205 in-line module 5RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No. o
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 500 x 750 x 120 mm
No. of rows
5
No. of partitions
24
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 125
- Height: 750
- Width: 500
- Depth: 120
- Number of DIN rails: 5
- Number of division units per DIN rail: 24
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 500 x 750 x 120 mm
- No. of rows
5
- No. of partitions
24
- Content
1 pc(s)
- Width
500 mm
- Height
750 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330336 Striebel & John 2CPX041223R9999 MG205 in-line module 5RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No. o
User & Safety Instructions
User & Safety Instructions 2330336 Striebel & John 2CPX041223R9999 MG205 in-line module 5RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No. o
Description
Interior fittings module, CombiLine, mounted in the cabinet, for DIN in-line installation devices, detent unit 5 RE = 750 mm, field width 2 = 500 mm, 120 place units, row spacing: 125, removal with 35 x 15 mm top hat profile rail with hole for wire holder, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
