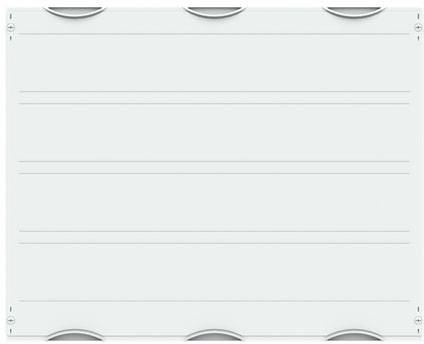

Striebel & John 2CPX041253R9999 MM314 mounting plate module 4RE / BH0, 3FB Mounting plates-Module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting plates-Module
Dim
(W x H x D) 750 x 600 x 200 mm
Content
1 pc(s)
Width
750 mm
Height
600 mm
Datasheet (PDF)
Technical specifications
- Installation depth 200
- With mounting rail: No.
- Height: 600
- Width 750
- With cover: Yes
- Depth: 200
- With mounting plate: No.
- Product type
Mounting plates-Module
- Dim
(W x H x D) 750 x 600 x 200 mm
- Content
1 pc(s)
- Width
750 mm
- Height
600 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330083 Striebel & John 2CPX041253R9999 MM314 mounting plate module 4RE / BH0, 3FB Mounting plates-Module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2330083 Striebel & John 2CPX041253R9999 MM314 mounting plate module 4RE / BH0, 3FB Mounting plates-Module 1 pc(s)
Description
Interior fittings module, CombiLine, mounted in the cabinet, for mounting plate, 4 RE locking unit = 600 mm, field width 3 = 750 mm, 144 place units, mounting plates made of steel sheet 2 mm, infinitely adjustable in depth via depth angle, usable depth from 103 mm to 158 mm, usable width of 688 mm, Usable height of 566 mm, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
