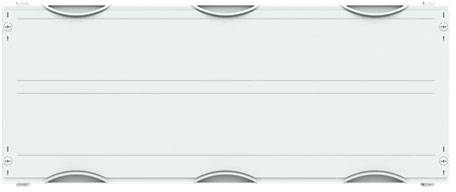

Striebel & John 2CPX041274R9999 5-pin 360 A
EAN:
Part number:
Item no:
Product type
Busbar module
Number of pins
5
Dim
(W x H x D) 750 x 12 x 225 mm
Nominal current
360 A
Nominal current - rounded value
360 A
Datasheet (PDF)
Technical specifications
- Height: 300
- Width 750
- With cover: Yes
- Number of pins: 5
- Depth: 225
- Busbar position: Center center
- Rail height 12
- Rail thickness 5
- Max. Rated current 360
- Track distance 40
- Short circuit resistance (ICW): 15
- Product type
Busbar module
- Number of pins
5
- Dim
(W x H x D) 750 x 12 x 225 mm
- Nominal current
360 A
- Nominal current - rounded value
360 A
- Content
1 pc(s)
- Width
750 mm
- Height
12 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330206 Striebel & John 2CPX041274R9999 5-pin 360 A
User & Safety Instructions
User & Safety Instructions 2330206 Striebel & John 2CPX041274R9999 5-pin 360 A
Description
Interior fittings module, CombiLine, mounted in the cabinet, for busbar system horizontal, latching unit 2 RE = 300 mm, field width 3 = 750 mm, 72 place units, unfitted for the installation of , for 5-pole busbar system, alignment of busbars: Horizontal, with busbar holder ZB5, busbar center distance: 40 mm, for a maximum of 5 Cu-rails, (busbars must be ordered separately), rated current in max. 360 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 225 mm, EDF or WR mounting frame must be ordered separately
