Striebel & John 2CPX041309R9999 MT243B Switch disconnector fuse 3-phase Suitable for Fuse size 000 - 4
Product type
Switch disconnector fuse
Number of pins
3
Dim
(W x H x D) 500 x 750 x 225 mm
Content
1 pc(s)
Model
3-phase
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse
- Number of pins
3
- Dim
(W x H x D) 500 x 750 x 225 mm
- Content
1 pc(s)
- Model
3-phase
- Size
NH1
- Suitable for
Fuse size 000 - 4
- Width
500 mm
- Height
750 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330084 Striebel & John 2CPX041309R9999 MT243B Switch disconnector fuse 3-phase Suitable for Fuse size 000 - 4
User & Safety Instructions
User & Safety Instructions 2330084 Striebel & John 2CPX041309R9999 MT243B Switch disconnector fuse 3-phase Suitable for Fuse size 000 - 4
Description

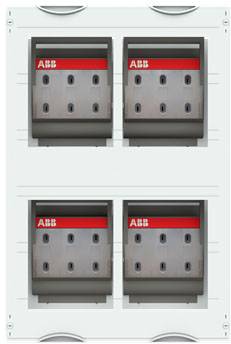

Interior configuration module, CombiLine, mounted in the cabinet, for NH1 fuse switch disconnectors, 5 RU = 750 mm detent unit, field width 2 = 500 mm, 120 space units, fitted with 4 NH1 NH fuse switch disconnectors, equipment manufacturer: ABB, XLP, with 3-pole busbar system, rated current in max. 630 A, plastic covers, 90 degree pressure twist lock, 7035, cover design: With cut-out, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately
This text is machine translated.
