Striebel & John 2CPX041310R9999 MT343B Switch disconnector fuse
EAN:
Part number:
Item no:
Product type
Switch disconnector fuse
Number of pins
3
Dim
(W x H x D) 750 x 750 x 225 mm
Content
1 pc(s)
Size
NH1
Datasheet (PDF)
Technical specifications
- Product type
Switch disconnector fuse
- Number of pins
3
- Dim
(W x H x D) 750 x 750 x 225 mm
- Content
1 pc(s)
- Size
NH1
- Width
750 mm
- Height
750 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329715 Striebel & John 2CPX041310R9999 MT343B Switch disconnector fuse
User & Safety Instructions
User & Safety Instructions 2329715 Striebel & John 2CPX041310R9999 MT343B Switch disconnector fuse
Description

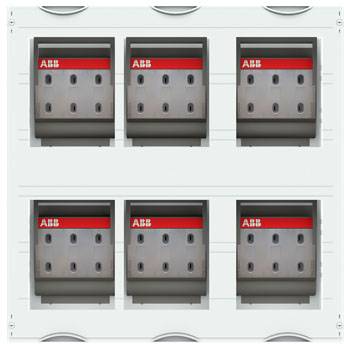

Interior configuration module, CombiLine, mounted in the cabinet, for NH1 fuse switch disconnectors, 5 RU = 750 mm detent unit, field width 3 = 750 mm, 180 space units, fitted with 6 NH1 NH fuse switch disconnectors, equipment manufacturer: ABB, XLP, with 3-pole busbar system, rated current in max. 630 A, plastic covers, 90 degree pressure twist lock, 7035, cover design: With cut-out, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately
This text is machine translated.
This text is machine translated.
