Striebel & John 2CPX041322R9999 MT345B Switch disconnector fuse 3-phase
Product type
Switch disconnector fuse
Number of pins
3
Dim
(W x H x D) 750 x 750 x 225 mm
Content
1 pc(s)
Model
3-phase
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse
- Number of pins
3
- Dim
(W x H x D) 750 x 750 x 225 mm
- Content
1 pc(s)
- Model
3-phase
- Size
NH2
- Width
750 mm
- Height
750 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326381 Striebel & John 2CPX041322R9999 MT345B Switch disconnector fuse 3-phase
User & Safety Instructions
User & Safety Instructions 2326381 Striebel & John 2CPX041322R9999 MT345B Switch disconnector fuse 3-phase
Description

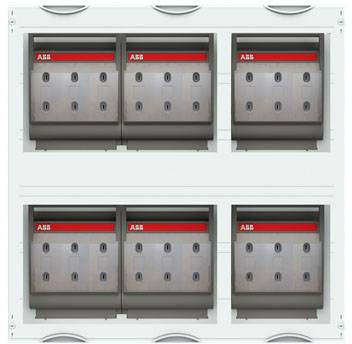

Interior configuration module, CombiLine, mounted in the cabinet, for NH2 fuse switch disconnectors, 5 RU = 750 mm detent unit, field width 3 = 750 mm, 180 space units, fitted with 6 NH2 NH fuse switch disconnectors, equipment manufacturer: ABB, XLP, with 3-pole busbar system, rated current in max. 630 A, plastic covers, 90 degree pressure twist lock, 7035, cover design: With cut-out, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately
This text is machine translated.
