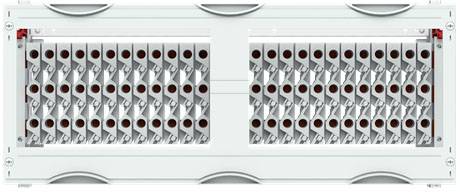

Striebel & John 2CPX041411R9999 MR302B bus bar module 2RE / BH000, 3FB, 60mm horizontal Busbar module 1 pc(s)
Product type
Busbar module
Dim
(W x H x D) 750 x 300 x 225 mm
Content
1 pc(s)
Width
750 mm
Height
300 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width 750
- With cover: Yes
- Number of poles: 3
- Depth: 225
- Number of three-phase circuits 25 A: 0
- Number of three-phase circuits 63 A: 24
- Fuses type: D02
- Mounting type of the D-fuse base: Busbar system
- Mounting type rail system: Horizontal
- Switchable: No.
- Product type
Busbar module
- Dim
(W x H x D) 750 x 300 x 225 mm
- Content
1 pc(s)
- Width
750 mm
- Height
300 mm
- Depth
225 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326792 Striebel & John 2CPX041411R9999 MR302B bus bar module 2RE / BH000, 3FB, 60mm horizontal Busbar module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2326792 Striebel & John 2CPX041411R9999 MR302B bus bar module 2RE / BH000, 3FB, 60mm horizontal Busbar module 1 pc(s)
Description
Interior fittings module, CombiLine, mounted in the cabinet, for busbar system 60 mm horizontal, latching unit 2 RE = 300 mm, field width 3 = 750 mm, 72 mounting units, equipped with 24 D02 busbar fuse bases, equipment manufacturer: ABB, NEOZED / DIAZED, for busbar system 3-pole, alignment of busbars: Horizontal, with busbar holder ZX146, busbar center distance: 60 mm, for a maximum of 3 Cu-rails, (busbars must be ordered separately), rated current in max. 250 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 225 mm, WR mounting frame must be ordered separately
