Striebel & John 2CPX041424R9999 MBN169 N/PE MODULE 1RE / 1FB Busbar module 2-pin 320 A 1 pc(s)
Product type
Busbar module
Number of pins
2
Dim
(W x H x D) 250 x 150 x 200 mm
Nominal current
320 A
Nominal current - rounded value
320 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 150
- Width 250
- With cover: Yes
- Number of poles: 2
- Depth: 200
- Busbar position: Center center
- Rail height 12
- Rail thickness 5
- Max. Rated current 320
- Track distance 40
- Short circuit resistance (ICW) 20
- Product type
Busbar module
- Number of pins
2
- Dim
(W x H x D) 250 x 150 x 200 mm
- Nominal current
320 A
- Nominal current - rounded value
320 A
- Content
1 pc(s)
- Width
250 mm
- Height
150 mm
- Depth
200 mm
250
150 mm
66 mm
FALSE
Closed
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330087 Striebel & John 2CPX041424R9999 MBN169 N/PE MODULE 1RE / 1FB Busbar module 2-pin 320 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2330087 Striebel & John 2CPX041424R9999 MBN169 N/PE MODULE 1RE / 1FB Busbar module 2-pin 320 A 1 pc(s)
Description

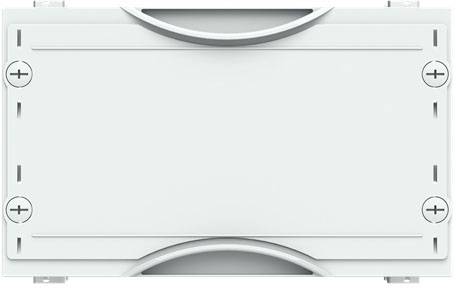

Interior fittings module, CombiLine, kit unassembled, for N/PE busbar system horizontal, latching unit 1 RE = 150 mm, field width 1 = 250 mm, 12 slot units, unfitted for the installation of , for 2-pole busbar system, alignment of busbars: Horizontal, with busbar holder ZX518, busbar center distance: 40 mm, For a maximum of 2 Cu-rails, (busbars must be ordered separately), rated current in max. 320 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
