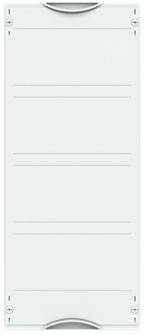

Striebel & John 2CPX041642R9999 MBM114K mounting plate module 4RE / 1FB, for small distributors Mounting plates-Module 1
Product type
Mounting plates-Module
Dim
(W x H x D) 250 x 600 x 120 mm
Content
1 pc(s)
Width
250 mm
Height
600 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Installation depth 120
- With mounting rail: No.
- Height: 600
- Width 250
- With cover: Yes
- Depth: 120
- With mounting plate: Yes
- Product type
Mounting plates-Module
- Dim
(W x H x D) 250 x 600 x 120 mm
- Content
1 pc(s)
- Width
250 mm
- Height
600 mm
- Depth
120 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327065 Striebel & John 2CPX041642R9999 MBM114K mounting plate module 4RE / 1FB, for small distributors Mounting plates-Module 1
User & Safety Instructions
User & Safety Instructions 2327065 Striebel & John 2CPX041642R9999 MBM114K mounting plate module 4RE / 1FB, for small distributors Mounting plates-Module 1
Description
Interior fittings module, CombiLine, kit unassembled, for mounting plate, 4 RE latching unit = 600 mm, field width 1 = 250 mm, 48 mounting units, mounting plates made of 2 mm steel sheet, infinitely adjustable in depth via depth angle, usable depth from 82 mm to 82 mm, usable width of 200 mm, usable height of 566 mm, Covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
This text is machine translated.
