Striebel & John 2CPX041650R9999 MBG101 in-line module 1RE / 1FB, 125 / 150mm in-line distance Multi-tier rack mount pane
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 250 x 150 x 120 mm
No. of rows
1
No. of partitions
12
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 125
- Height: 150
- Width 250
- Depth: 120
- Number of DIN rails: 1
- Number of division units per DIN rail: 12
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 250 x 150 x 120 mm
- No. of rows
1
- No. of partitions
12
- Content
1 pc(s)
- Width
250 mm
- Height
150 mm
- Depth
120 mm
250
150 mm
120 mm
FALSE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2318218 Striebel & John 2CPX041650R9999 MBG101 in-line module 1RE / 1FB, 125 / 150mm in-line distance Multi-tier rack mount pane
User & Safety Instructions
User & Safety Instructions 2318218 Striebel & John 2CPX041650R9999 MBG101 in-line module 1RE / 1FB, 125 / 150mm in-line distance Multi-tier rack mount pane
Description

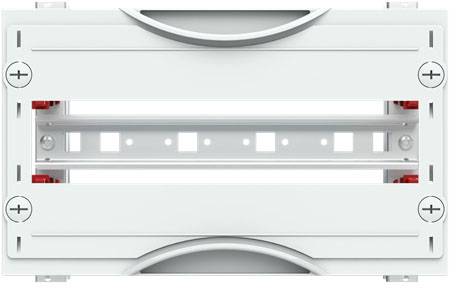

Interior fittings module, CombiLine, kit unassembled, for DIN series installation devices, snap-in unit 1 RE = 150 mm, field width 1 = 250 mm, 12 place units, row spacing: 125 / 150, removal with 35 x 15 mm top hat profile rail with hole for wire holder, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
This text is machine translated.
