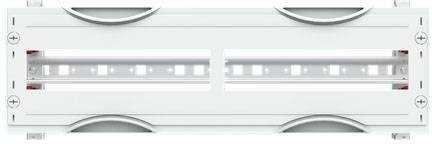

Striebel & John 2CPX041651R9999 MBG201 in-line module 1RE / 2FB, 125 / 150mm in-line distance Multi-tier rack mount pane
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 500 x 150 x 120 mm
No. of rows
1
No. of partitions
24
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 125
- Height: 150
- Width: 500
- Depth: 120
- Number of DIN rails: 1
- Number of division units per DIN rail: 24
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 500 x 150 x 120 mm
- No. of rows
1
- No. of partitions
24
- Content
1 pc(s)
- Width
500 mm
- Height
150 mm
- Depth
120 mm
500
150 mm
66 mm
FALSE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2319576 Striebel & John 2CPX041651R9999 MBG201 in-line module 1RE / 2FB, 125 / 150mm in-line distance Multi-tier rack mount pane
User & Safety Instructions
User & Safety Instructions 2319576 Striebel & John 2CPX041651R9999 MBG201 in-line module 1RE / 2FB, 125 / 150mm in-line distance Multi-tier rack mount pane
Description
Interior fittings module, CombiLine, kit unassembled, for DIN series installation devices, snap-in unit 1 RE = 150 mm, field width 2 = 500 mm, 24 place units, row spacing: 125 / 150, removal with 35 x 15 mm top hat profile rail with hole for wire holder, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
