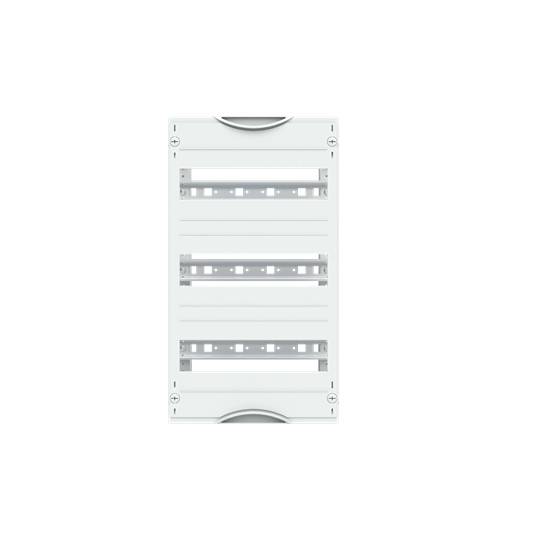

Striebel & John 2CPX041659R9999 MBG103 Serial installation module 3RE / 1FB, 125 mm series distance Multi-tier rack moun
Product type
Multi-tier rack mount panel
Factory colour
Multicolour
Content
1 pc(s)
Weight
0
Width
250
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Multi-tier rack mount panel
- Factory colour
Multicolour
- Content
1 pc(s)
- Weight
0
250
450 mm
120 mm
FALSE
With notch
3
12
TRUE
125 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3113973 Striebel & John 2CPX041659R9999 MBG103 Serial installation module 3RE / 1FB, 125 mm series distance Multi-tier rack moun
User & Safety Instructions
User & Safety Instructions 3113973 Striebel & John 2CPX041659R9999 MBG103 Serial installation module 3RE / 1FB, 125 mm series distance Multi-tier rack moun
Description
Interior installation module, CombiLine, unassembled kit, for DIN rail mounting devices, snap-in unit 3 RE = 450 mm, field width 1 = 250 mm, 36 space units, series distance: 125, removal with top hat profile rail 35 x 15 mm with holes for wire holder, for installation devices according to DIN 43880, plastic covers, 90 degree pressure twist lock, RAL 7035, version of cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
