Striebel & John 2CPX041663R9999 No. of rows 3
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 750 x 450 x 120 mm
No. of rows
3
No. of partitions
36
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 125
- Height: 450
- Width 750
- Depth: 120
- Number of DIN rails: 3
- Number of division units per DIN rail: 36
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 750 x 450 x 120 mm
- No. of rows
3
- No. of partitions
36
- Content
1 pc(s)
- Width
750 mm
- Height
450 mm
- Depth
120 mm
- Weight
0
750
450 mm
66 mm
FALSE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2323465 Striebel & John 2CPX041663R9999 No. of rows 3
User & Safety Instructions
User & Safety Instructions 2323465 Striebel & John 2CPX041663R9999 No. of rows 3
Description

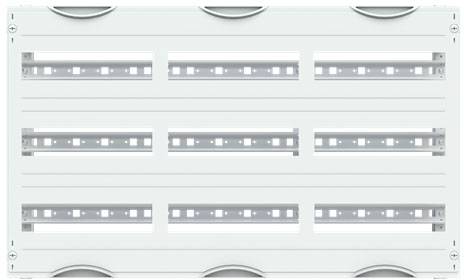

Interior fittings module, CombiLine, kit unassembled, for DIN series installation devices, 3 RE latch unit = 450 mm, field width 3 = 750 mm, 108 place units, row spacing: 125, removal with 35 x 15 mm top hat profile rail with hole for wire holder, top hat rail from 3-field width with additional stabilization rail, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
