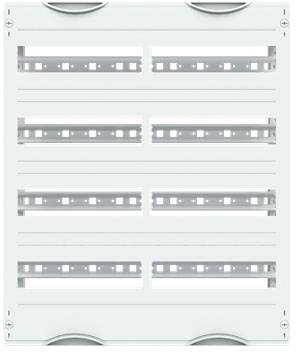

Striebel & John 2CPX041667R9999 MBG204 in-line module 4RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No.
Product type
Multi-tier rack mount panel
Dim
(W x H x D) 500 x 600 x 120 mm
No. of rows
4
No. of partitions
24
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Attachment option: Yes
- By bus-rail: Yes
- Row spacing 125
- Height: 600
- Width: 500
- Depth: 120
- Number of DIN rails: 4
- Number of division units per DIN rail: 24
- Product type
Multi-tier rack mount panel
- Dim
(W x H x D) 500 x 600 x 120 mm
- No. of rows
4
- No. of partitions
24
- Content
1 pc(s)
- Width
500 mm
- Height
600 mm
- Depth
120 mm
500
600 mm
66 mm
FALSE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2322519 Striebel & John 2CPX041667R9999 MBG204 in-line module 4RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No.
User & Safety Instructions
User & Safety Instructions 2322519 Striebel & John 2CPX041667R9999 MBG204 in-line module 4RE / 2FB, 125mm in-line distance Multi-tier rack mount panel No.
Description
Interior fittings module, CombiLine, kit unassembled, for DIN in-line installations, 4 RE stop unit = 600 mm, field width 2 = 500 mm, 96 place units, row spacing: 125, removal with top hat profile rail 35 x 15 mm with holes for wire holders, for installation devices according to DIN 43880, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of cover: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
