Striebel & John 2CPX041685R9999 MBK207 serial terminal module 2RE / 2FB, horizontal arrangement Terminal Multicolour 1 p
Product type
Terminal
Factory colour
Multicolour
Number of pins
0
Content
1 pc(s)
Weight
0
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Terminal
- Factory colour
Multicolour
- Number of pins
0
- Content
1 pc(s)
- Weight
0
500
300 mm
161 mm
FALSE
Closed
0
0
850 A
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3113979 Striebel & John 2CPX041685R9999 MBK207 serial terminal module 2RE / 2FB, horizontal arrangement Terminal Multicolour 1 p
User & Safety Instructions
User & Safety Instructions 3113979 Striebel & John 2CPX041685R9999 MBK207 serial terminal module 2RE / 2FB, horizontal arrangement Terminal Multicolour 1 p
Description

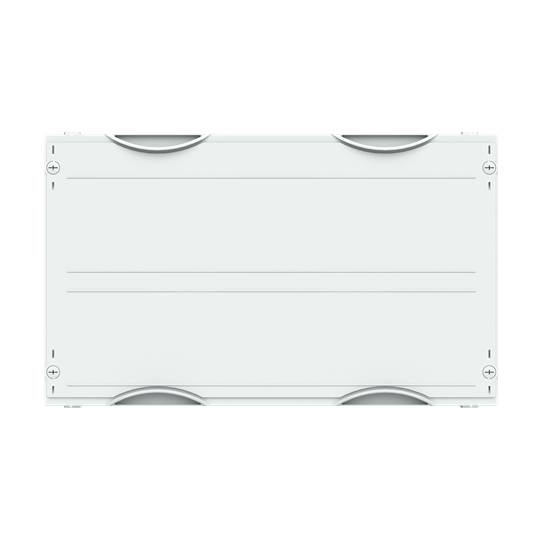

Interior installation module, CombiLine, unassembled kit, for horizontal top-hat rails for terminal blocks, snap-in unit 2 RE = 300 mm, field width 2 = 500 mm, 48 pitch units, series distance: 150, removal with top hat rail 35 x 15 mm with hole for wire holder, in depth infinitely adjustable via low installation angle, usable depth from 68 mm to 145 mm, usable width from 438 mm, covers made of plastic, 90 degree pressure - turning lock, RAL 7035, version of the cover: closed, can be used above a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
