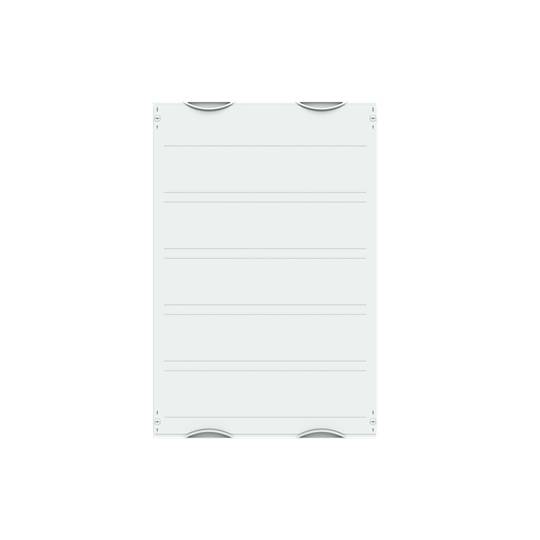

Striebel & John 2CPX041703R9999 MBK210 serial terminal module 5RE / 2FB, horizontal arrangement Terminal 1 pc(s)
EAN:
Part number:
Item no:
Product type
Terminal
Number of pins
0
Content
1 pc(s)
Width
500 mm
Height
750 mm
Datasheet (PDF)
Technical specifications
- Product type
Terminal
- Number of pins
0
- Content
1 pc(s)
500 mm
750 mm
200 mm
0
0
850 A
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118538 Striebel & John 2CPX041703R9999 MBK210 serial terminal module 5RE / 2FB, horizontal arrangement Terminal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118538 Striebel & John 2CPX041703R9999 MBK210 serial terminal module 5RE / 2FB, horizontal arrangement Terminal 1 pc(s)
Description
Interior installation module, CombiLine, unassembled kit, for horizontal top-hat rails for terminal blocks, snap-in unit 5 RE = 750 mm, field width 2 = 500 mm, 120 pitch units, series distance: 150, removal with top hat rail 35 x 15 mm with hole for wire holder, in depth infinitely adjustable via low installation angle, usable depth from 68 mm to 145 mm, usable width from 438 mm, covers made of plastic, 90 degree pressure - turning lock, RAL 7035, version of the cover: closed, can be used above a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
