Striebel & John 2CPX041710R9999 MBM112 mounting plates-module 2RE / 1FB Mounting plates-Module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mounting plates-Module
Content
1 pc(s)
Width
250
Height
300 mm
Depth
200 mm
Datasheet (PDF)
Technical specifications
- Product type
Mounting plates-Module
- Content
1 pc(s)
250
300 mm
200 mm
TRUE
120 mm
FALSE
Closed
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118540 Striebel & John 2CPX041710R9999 MBM112 mounting plates-module 2RE / 1FB Mounting plates-Module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118540 Striebel & John 2CPX041710R9999 MBM112 mounting plates-module 2RE / 1FB Mounting plates-Module 1 pc(s)
Description

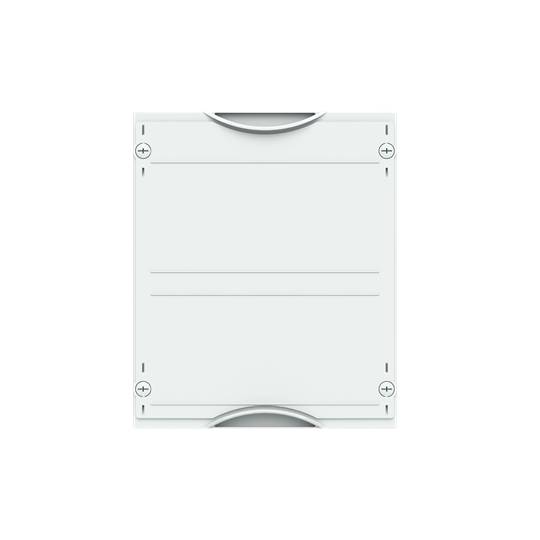

Interior installation module, CombiLine, kit unassembled, for mounting plate, snap unit 2 RU = 300 mm, field width 1 = 250 mm, 24 space units, mounting plates made of 2 mm steel plate, infinitely adjustable depth via civil mounting bracket, usable depth from 103 mm to 158 mm, usable width of 188 mm, usable height of 266 mm, Covers made of plastic, 90 degree pressure-turning lock, RAL 7035, version of the cover: closed, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
This text is machine translated.
This text is machine translated.
