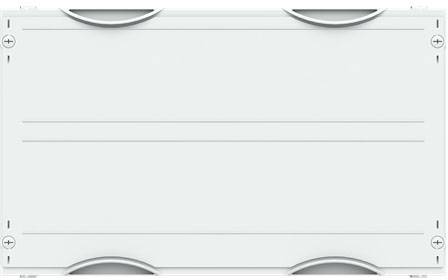

Striebel & John 2CPX041738R9999 MBS224 bus bar module 2RE / 2FB, bus bar system 5-pin Busbar module 5-pin 360 A 1 pc(s)
Product type
Busbar module
Number of pins
5
Dim
(W x H x D) 500 x 300 x 200 mm
Nominal current
360 A
Nominal current - rounded value
360 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width: 500
- With cover: Yes
- Number of pins: 5
- Depth: 200
- Busbar position: Center center
- Rail height 12
- Rail thickness 5
- Max. Rated current 360
- Track distance 40
- Short circuit resistance (ICW): 15
- Product type
Busbar module
- Number of pins
5
- Dim
(W x H x D) 500 x 300 x 200 mm
- Nominal current
360 A
- Nominal current - rounded value
360 A
- Content
1 pc(s)
- Width
500 mm
- Height
300 mm
- Depth
200 mm
500
300 mm
200 mm
FALSE
Closed
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329963 Striebel & John 2CPX041738R9999 MBS224 bus bar module 2RE / 2FB, bus bar system 5-pin Busbar module 5-pin 360 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2329963 Striebel & John 2CPX041738R9999 MBS224 bus bar module 2RE / 2FB, bus bar system 5-pin Busbar module 5-pin 360 A 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system horizontal, catch unit 2 RE = 300 mm, field width 2 = 500 mm, 48 place units, unfitted for the installation of , for busbar system 5-pole, alignment of busbars: Horizontal, with busbar holder ZB5, busbar center distance: 40 mm, for a maximum of 5 Cu-rails, (busbars must be ordered separately), rated current in max. 360 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
