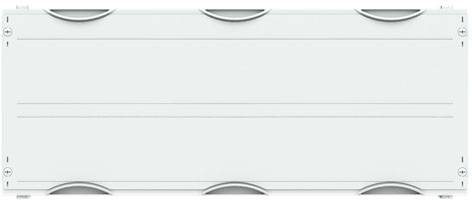

Striebel & John 2CPX041742R9999 MBS327 bus bar module 2RE / 3FB, bus bar system 3-pin Busbar module 3-pin 630 A 1 pc(s)
Product type
Busbar module
Number of pins
3
Dim
(W x H x D) 750 x 30 x 225 mm
Nominal current
630 A
Nominal current - rounded value
630 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width 750
- With cover: Yes
- Number of poles: 3
- Depth: 225
- Busbar position: Center center
- Track height 30
- Rail thickness 5
- Max. Rated current 630
- Track distance 60
- Short circuit resistance (ICW) 28
- Product type
Busbar module
- Number of pins
3
- Dim
(W x H x D) 750 x 30 x 225 mm
- Nominal current
630 A
- Nominal current - rounded value
630 A
- Content
1 pc(s)
- Width
750 mm
- Height
30 mm
- Depth
225 mm
750
300 mm
215 mm
FALSE
Closed
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328045 Striebel & John 2CPX041742R9999 MBS327 bus bar module 2RE / 3FB, bus bar system 3-pin Busbar module 3-pin 630 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2328045 Striebel & John 2CPX041742R9999 MBS327 bus bar module 2RE / 3FB, bus bar system 3-pin Busbar module 3-pin 630 A 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system horizontal, catch unit 2 RE = 300 mm, field width 3 = 750 mm, 72 place units, unfitted for the installation of , for busbar system 3-pole, alignment of busbars: Horizontal, with busbar holder ZX151, busbar center distance: 60 mm, for a maximum of 3 Cu-rails, (busbars must be ordered separately), rated current in max. 630 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
