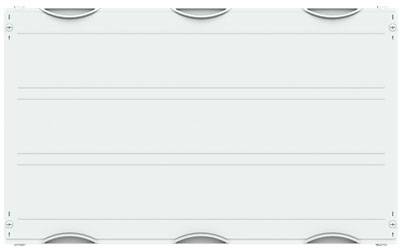

Striebel & John 2CPX041745R9999 MBS331 bus bar module 3RE / 3FB, bus bar system 3-pin Busbar module 3-pin 850 A 1 pc(s)
Product type
Busbar module
Number of pins
3
Dim
(W x H x D) 750 x 450 x 275 mm
Nominal current
850 A
Nominal current - rounded value
850 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 450
- Width 750
- With cover: Yes
- Number of poles: 3
- Depth: 275
- Busbar position: Center center
- Rail height 40
- Rail strength: 10
- Max. Rated current 850
- Track distance 100
- Short circuit resistance (ICW) 25
- Product type
Busbar module
- Number of pins
3
- Dim
(W x H x D) 750 x 450 x 275 mm
- Nominal current
850 A
- Nominal current - rounded value
850 A
- Content
1 pc(s)
- Width
750 mm
- Height
450 mm
- Depth
275 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327698 Striebel & John 2CPX041745R9999 MBS331 bus bar module 3RE / 3FB, bus bar system 3-pin Busbar module 3-pin 850 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327698 Striebel & John 2CPX041745R9999 MBS331 bus bar module 3RE / 3FB, bus bar system 3-pin Busbar module 3-pin 850 A 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system horizontal, detent unit 3 RE = 450 mm, field width 3 = 750 mm, 108 place units, unfitted for the installation of , for busbar system 3-pole, alignment of busbars: Horizontal, with busbar holder ZX520, busbar center distance: 100 mm, for a maximum of 3 Cu-rails, (busbars must be ordered separately), rated current in max. 850 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 275 mm, WR mounting frame must be ordered separately
This text is machine translated.
