Striebel & John 2CPX041770R9999 MBT136 Switch disconnector fuse module Fuse size = 00
Product type
Switch disconnector fuse module
Number of pins
3
Fuse size
00
Dim
(L x W x H) 300 x 250 x 300 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Fuse size
00
- Dim
(L x W x H) 300 x 250 x 300 mm
- Content
1 pc(s)
- Size
NH00
- Width
250 mm
- Height
300 mm
- Length
300 mm
- Depth
200 mm
250
300 mm
200 mm
TRUE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328754 Striebel & John 2CPX041770R9999 MBT136 Switch disconnector fuse module Fuse size = 00
User & Safety Instructions
User & Safety Instructions 2328754 Striebel & John 2CPX041770R9999 MBT136 Switch disconnector fuse module Fuse size = 00
Description

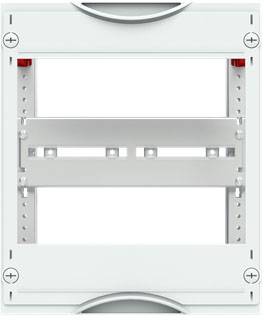

Interior fittings module, CombiLine, kit unassembled, for NH00 fuse switch disconnectors, 2 RE latching unit = 300 mm, field width 1 = 250 mm, 24 space units, unfitted for the installation of 2 NH00 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 320 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover version: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
This text is machine translated.
