Striebel & John 2CPX041772R9999 MBT336 Switch disconnector fuse module Fuse size = 00
Product type
Switch disconnector fuse module
Number of pins
3
Fuse size
00
Dim
(W x H x D) 750 x 300 x 200 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Fuse size
00
- Dim
(W x H x D) 750 x 300 x 200 mm
- Content
1 pc(s)
- Size
NH00
- Width
750 mm
- Height
300 mm
- Depth
200 mm
750
300 mm
66 mm
TRUE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326386 Striebel & John 2CPX041772R9999 MBT336 Switch disconnector fuse module Fuse size = 00
User & Safety Instructions
User & Safety Instructions 2326386 Striebel & John 2CPX041772R9999 MBT336 Switch disconnector fuse module Fuse size = 00
Description

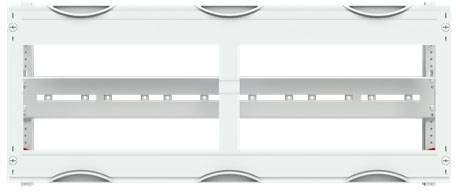

Interior fittings module, CombiLine, kit unassembled, for NH00 fuse switch disconnectors, 2 RE latching unit = 300 mm, field width 3 = 750 mm, 72 space units, unfitted for the installation of 6 NH00 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 320 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover version: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
