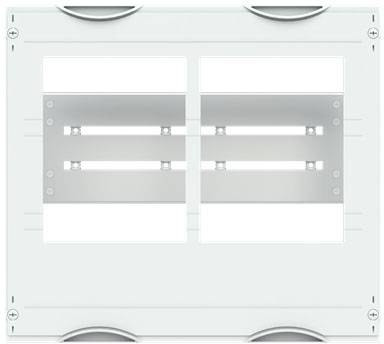

Striebel & John 2CPX041777R9999 MBT242 Switch disconnector fuse module
Product type
Switch disconnector fuse module
Number of pins
3
Dim
(W x H x D) 500 x 450 x 200 mm
Content
1 pc(s)
Size
NH1
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Dim
(W x H x D) 500 x 450 x 200 mm
- Content
1 pc(s)
- Size
NH1
- Width
500 mm
- Height
450 mm
- Depth
200 mm
500
450 mm
80 mm
TRUE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324996 Striebel & John 2CPX041777R9999 MBT242 Switch disconnector fuse module
User & Safety Instructions
User & Safety Instructions 2324996 Striebel & John 2CPX041777R9999 MBT242 Switch disconnector fuse module
Description
Interior fittings module, CombiLine, kit unassembled, for NH1 fuse switch disconnectors, 3 RU latch unit = 450 mm, field width 2 = 500 mm, 72 space units, unfitted for the installation of 2 NH1 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 440 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover version: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
