Striebel & John 2CPX041779R9999 MBT143 Switch disconnector fuse module 3-phase Fuse size = 1
Product type
Switch disconnector fuse module
Number of pins
3
Fuse size
1
Dim
(L x W x H) 750 x 250 x 750 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Fuse size
1
- Dim
(L x W x H) 750 x 250 x 750 mm
- Content
1 pc(s)
- Model
3-phase
- Size
NH1
- Width
250 mm
- Height
750 mm
- Length
750 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327894 Striebel & John 2CPX041779R9999 MBT143 Switch disconnector fuse module 3-phase Fuse size = 1
User & Safety Instructions
User & Safety Instructions 2327894 Striebel & John 2CPX041779R9999 MBT143 Switch disconnector fuse module 3-phase Fuse size = 1
Description

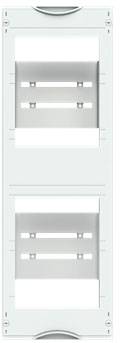

Interior fittings module, CombiLine, kit unassembled, for NH1 fuse switch disconnectors, 5 RE latching unit = 750 mm, field width 1 = 250 mm, 60 space units, unfitted for the installation of 2 NH1 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 630 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover design: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
