Striebel & John 2CPX041783R9999 MBT244 Switch disconnector fuse module 3-phase Fuse size = 2
Product type
Switch disconnector fuse module
Number of pins
3
Fuse size
2
Dim
(W x H x D) 500 x 450 x 215 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Fuse size
2
- Dim
(W x H x D) 500 x 450 x 215 mm
- Content
1 pc(s)
- Model
3-phase
- Size
NH2
- Width
500 mm
- Height
450 mm
- Depth
215 mm
- Switch/button features
+ rotary switch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2329158 Striebel & John 2CPX041783R9999 MBT244 Switch disconnector fuse module 3-phase Fuse size = 2
User & Safety Instructions
User & Safety Instructions 2329158 Striebel & John 2CPX041783R9999 MBT244 Switch disconnector fuse module 3-phase Fuse size = 2
Description

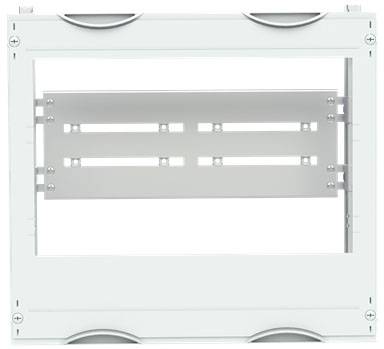

Interior fittings module, CombiLine, kit unassembled, for NH2 fuse switch disconnectors, 3 RU latch unit = 450 mm, field width 2 = 500 mm, 72 space units, unfitted for the installation of 2 NH2 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 440 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover version: With cut-out, applicable from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
