Striebel & John 2CPX041785R9999 MBT145 Switch disconnector fuse module
Product type
Switch disconnector fuse module
Number of pins
3
Dim
(W x H x D) 250 x 750 x 200 mm
Content
1 pc(s)
Size
NH2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Switch disconnector fuse module
- Number of pins
3
- Dim
(W x H x D) 250 x 750 x 200 mm
- Content
1 pc(s)
- Size
NH2
- Width
250 mm
- Height
750 mm
- Depth
200 mm
- Switch/button features
+ rotary switch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325958 Striebel & John 2CPX041785R9999 MBT145 Switch disconnector fuse module
User & Safety Instructions
User & Safety Instructions 2325958 Striebel & John 2CPX041785R9999 MBT145 Switch disconnector fuse module
Description

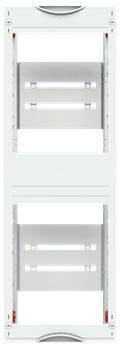

Interior fittings module, CombiLine, kit unassembled, for NH2 fuse switch disconnectors, 5 RE latching unit = 750 mm, field width 1 = 250 mm, 60 space units, unfitted for the installation of 2 NH2 LV HRC fuse switch disconnectors, for 3-pole busbar system, rated current in max. 630 A, plastic covers, 90 degree pressure twist lock, RAL 7035, cover design: With cut-out, applicable from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
