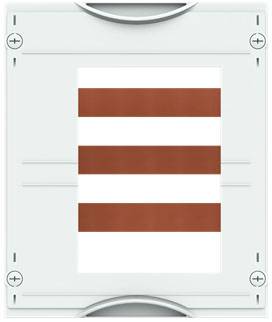

Striebel & John 2CPX041825R9999 MBR102 bus bar module 60mm 2RE / 1FB, usable width of 215mm Busbar module 1 pc(s)
Product type
Busbar module
Dim
(W x H x D) 250 x 300 x 120 mm
Content
1 pc(s)
Width
250 mm
Height
300 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width 250
- With cover: Yes
- Number of poles: 3
- Depth: 120
- Number of three-phase circuits 25 A: 0
- Number of three-phase circuits 63 A: 0
- Fuses type: D02
- Mounting type of the D-fuse base: Busbar system
- Mounting type rail system: Horizontal
- Switchable: No.
- Product type
Busbar module
- Dim
(W x H x D) 250 x 300 x 120 mm
- Content
1 pc(s)
- Width
250 mm
- Height
300 mm
- Depth
120 mm
250
300 mm
88 mm
FALSE
With notch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2327896 Striebel & John 2CPX041825R9999 MBR102 bus bar module 60mm 2RE / 1FB, usable width of 215mm Busbar module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2327896 Striebel & John 2CPX041825R9999 MBR102 bus bar module 60mm 2RE / 1FB, usable width of 215mm Busbar module 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system 60 mm horizontal, latching unit 2 RE = 300 mm, field width 1 = 250 mm, 24 station units, , usable width of 215 mm, unfitted for the installation of D0 and NH fuse switch disconnectors or D02, E27, E33 busbar system, for 3-pole busbar system, alignment of busbars: Horizontal, with ZX146 busbar holder, busbar center distance: 60 mm, for a maximum of 3 Cu rails, (busbars must be ordered separately), rated current in max. 440 A, plastic covers, 90 degree pressure-twist lock, RAL 7035, cover design: With cut-out, can be used from a cabinet depth of 120 mm, EDF or WR mounting frame must be ordered separately
