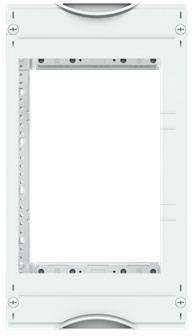

Striebel & John 2CPX041829R9999 MBR103H bus bar module 60mm 3RE / 1FB, usable height of 295mm Busbar module 1 pc(s)
Product type
Busbar module
Dim
(W x H x D) 250 x 450 x 200 mm
Content
1 pc(s)
Width
250 mm
Height
450 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 450
- Width 250
- With cover: Yes
- Number of poles: 3
- Depth: 200
- Number of three-phase circuits 25 A: 0
- Number of three-phase circuits 63 A: 0
- Fuses type: D02
- Mounting type of the D-fuse base: Busbar system
- Mounting type rail system: Horizontal
- Switchable: No.
- Product type
Busbar module
- Dim
(W x H x D) 250 x 450 x 200 mm
- Content
1 pc(s)
- Width
250 mm
- Height
450 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326252 Striebel & John 2CPX041829R9999 MBR103H bus bar module 60mm 3RE / 1FB, usable height of 295mm Busbar module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2326252 Striebel & John 2CPX041829R9999 MBR103H bus bar module 60mm 3RE / 1FB, usable height of 295mm Busbar module 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system 60 mm vertical, detent unit 3 RE = 450 mm, field width 1 = 250 mm, 36 place units, , usable height of 295 mm, unfitted for the installation of D02, E27, E33, for busbar system 3-pole, alignment of busbar: Vertical, with busbar holder ZX146, busbar center distance: 60 mm, for a maximum of 3 Cu-rails, (busbars must be ordered separately), rated current in max. 250 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
