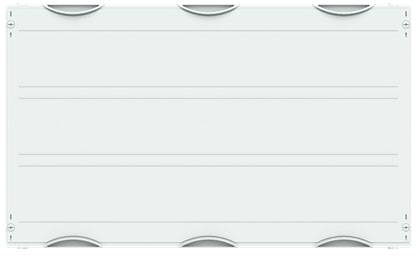

Striebel & John 2CPX041832R9999 MBR303 bus bar module 60mm 3RE / 3FB, usable width of 665mm Busbar module 3-pin 630 A 1
Product type
Busbar module
Number of pins
3
Dim
(W x H x D) 750 x 450 x 260 mm
Nominal current
630 A
Nominal current - rounded value
630 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated current 630
- Size: Other
- Height: 450
- Width 750
- Mounting type: Busbar system
- With cover: Yes
- Number of poles: 3
- Depth: 260
- Number of LV HRC fuse disconnectors: -
- Number of NH fuse bases: 0
- Neutral switching: No.
- Product type
Busbar module
- Number of pins
3
- Dim
(W x H x D) 750 x 450 x 260 mm
- Nominal current
630 A
- Nominal current - rounded value
630 A
- Content
1 pc(s)
- Width
750 mm
- Height
450 mm
- Depth
260 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326100 Striebel & John 2CPX041832R9999 MBR303 bus bar module 60mm 3RE / 3FB, usable width of 665mm Busbar module 3-pin 630 A 1
User & Safety Instructions
User & Safety Instructions 2326100 Striebel & John 2CPX041832R9999 MBR303 bus bar module 60mm 3RE / 3FB, usable width of 665mm Busbar module 3-pin 630 A 1
Description
Interior fittings module, CombiLine, kit unassembled, for busbar system 60 mm horizontal, latching unit 3 RE = 450 mm, field width 3 = 750 mm, 108 place units, , usable width of 665 mm, unfitted for the installation of D0 and NH fuse switch disconnectors or busbar fuse bases D02, E27, E33, for 3-pole busbar system, alignment of busbars: Horizontal, with ZX146 busbar holder, busbar center distance: 60 mm, for a maximum of 3 Cu rails, (busbars must be ordered separately), rated current in max. 630 A, plastic covers, 90 degree pressure-twist lock, RAL 7035, cover version: Closed, can be used from a cabinet depth of 275 mm, WR mounting frame must be ordered separately
