Striebel & John 2CPX042102R9999 MBW250A Converter support module 3RE / 1FB, for vertical SS system Converter bracket mod
Product type
Converter bracket module
Number of pins
3
Dim
(W x H x D) 250 x 30 x 200 mm
Nominal current
250 A
Nominal current - rounded value
250 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 450
- Width 250
- With cover: Yes
- Number of poles: 3
- Depth: 200
- Busbar position: Center center
- Track height 30
- Rail thickness 5
- Max. Rated current 250
- Track distance 42
- Short circuit resistance (ICW) 25
- Product type
Converter bracket module
- Number of pins
3
- Dim
(W x H x D) 250 x 30 x 200 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Content
1 pc(s)
- Width
250 mm
- Height
30 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2326944 Striebel & John 2CPX042102R9999 MBW250A Converter support module 3RE / 1FB, for vertical SS system Converter bracket mod
User & Safety Instructions
User & Safety Instructions 2326944 Striebel & John 2CPX042102R9999 MBW250A Converter support module 3RE / 1FB, for vertical SS system Converter bracket mod
Description

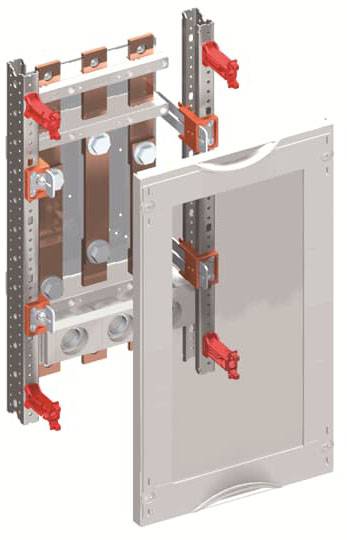

Interior fittings module, CombiLine, kit unassembled, for vertical busbar system, latching unit 3 RE = 450 mm, field width 1 = 250 mm, 36 station units, equipped with E27 busbar fuse base, apparatus make: , , with 3-pole busbar system, alignment of busbars: Vertical with removable converter supports, with ZX146 busbar holder, with 3 Cu rails, rated current in max. 250 A, plastic covers, 90 degree pressure-twist lock, RAL 7035, cover design: With viewing window, can be used from a cabinet depth of 215 mm, EDF or WR Mounting frame must be ordered separately
