Striebel & John 2CPX042114R9999 MD252 busbar system module 3RE / 2FB, for NH00 circuit breakers Busbar module 3-pin 850
Product type
Busbar module
Number of pins
3
Dim
(W x H x D) 500 x 450 x 131 mm
Nominal current
850 A
Nominal current - rounded value
850 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated current 850
- Size: Other
- Height: 450
- Width: 500
- Mounting type: Busbar system
- With cover: Yes
- Number of poles: 3
- Depth: 131
- Number of LV HRC fuse disconnectors: -
- Number of NH fuse bases: 0
- Neutral switching: No.
- Product type
Busbar module
- Number of pins
3
- Dim
(W x H x D) 500 x 450 x 131 mm
- Nominal current
850 A
- Nominal current - rounded value
850 A
- Content
1 pc(s)
- Width
500 mm
- Height
450 mm
- Depth
131 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324998 Striebel & John 2CPX042114R9999 MD252 busbar system module 3RE / 2FB, for NH00 circuit breakers Busbar module 3-pin 850
User & Safety Instructions
User & Safety Instructions 2324998 Striebel & John 2CPX042114R9999 MD252 busbar system module 3RE / 2FB, for NH00 circuit breakers Busbar module 3-pin 850
Description

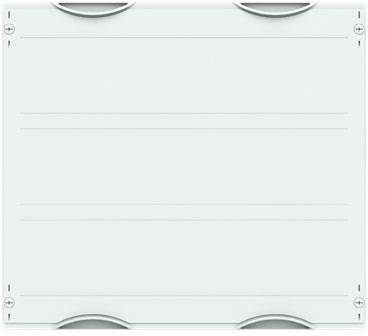

Interior fittings module, CombiLine, mounted in the cabinet, for 100 mm busbar system NH00 switch disconnectors, 3 RE latching unit = 450 mm, field width 2 = 500 mm, 72 place units, usable width of 400 mm, unfitted for the installation of 8 NH00 LV HRC fuse disconnectors, for 3-pole busbar system, alignment of busbars: Horizontal, with ZX520 busbar holder, busbar center distance: 100 mm, for a maximum of 3 Cu-rails, (busbars must be ordered separately), rated current in max. 850 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
