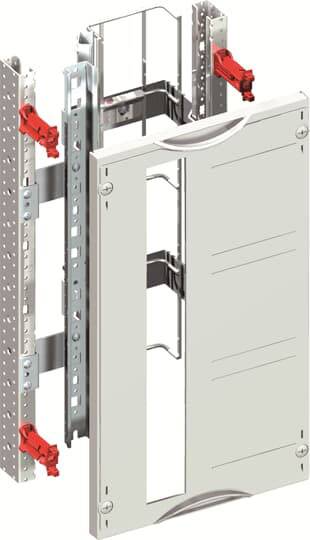

Striebel & John 2CPX042165R9999 MBC104VS Smissline module 4RE / 1FB, for SMISSLINE TP Smissline module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Smissline module
Dim
(W x H x D) 250 x 600 x 275 mm
Content
1 pc(s)
Width
250 mm
Height
600 mm
Datasheet (PDF)
Technical specifications
- Installation depth 275
- With mounting rail: Yes
- Height: 600
- Width 250
- With cover: Yes
- Depth: 275
- With mounting plate: No.
- Product type
Smissline module
- Dim
(W x H x D) 250 x 600 x 275 mm
- Content
1 pc(s)
- Width
250 mm
- Height
600 mm
- Depth
275 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2328760 Striebel & John 2CPX042165R9999 MBC104VS Smissline module 4RE / 1FB, for SMISSLINE TP Smissline module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2328760 Striebel & John 2CPX042165R9999 MBC104VS Smissline module 4RE / 1FB, for SMISSLINE TP Smissline module 1 pc(s)
Description
Interior fittings module, CombiLine, kit unassembled, for SMISSLINE TP vertical device installation, 4 RE locking unit = 600 mm, field width 1 = 250 mm, 48 mounting units, removal with 35 x 15 mm top hat profile rail with hole for wire holder, for connector length 1 x 30 place units, covers made of plastic, 90 degree push-twist lock, RAL 7035, Design of the cover: With cut-out, applicable from a cabinet depth of 275 mm, WR mounting frame must be ordered separately
