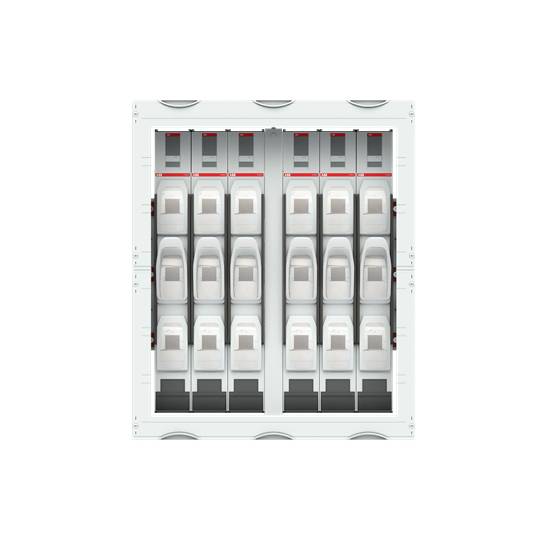

Striebel & John 2CPX042254R9999 MD31EB NH switch disconnector module 6RE / 3FB, incl. 6x NH1 strips Circuit breaker swit
Product type
Circuit breaker switch module
Number of pins
3
Content
1 pc(s)
Mounting method
Busbar system
Width
750 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker switch module
- Number of pins
3
- Content
1 pc(s)
Busbar system
750 mm
900 mm
159.5 mm
850 A
TRUE
3
NH1
0
FALSE
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3114076 Striebel & John 2CPX042254R9999 MD31EB NH switch disconnector module 6RE / 3FB, incl. 6x NH1 strips Circuit breaker swit
User & Safety Instructions
User & Safety Instructions 3114076 Striebel & John 2CPX042254R9999 MD31EB NH switch disconnector module 6RE / 3FB, incl. 6x NH1 strips Circuit breaker swit
Description
Interior installation module, CombiLine, installed in the cabinet, for busbar system 185 mm NH-isolator strips, snap-in unit 6 RE = 900 mm, field width 3 = 750 mm, 180 space units, usable width of 600 mm, equipped with 6 NH fuse disconnect strips NH1, operating equipment: ABB, inLine II ZHBM + EFM, for busbar system 3-pole, orientation of busbars: horizontal, with busbar bracket ZX522, busbar center distance: 185 mm, for a maximum of 3 Cu rails, (busbars must be ordered separately), rated current In max. 850 A, plastic covers, 90 degree pressure screw closure, RAL 7035, cover version: with cut-out, can be used from a cabinet depth of 275 mm, WR mounting frame must be ordered separately
