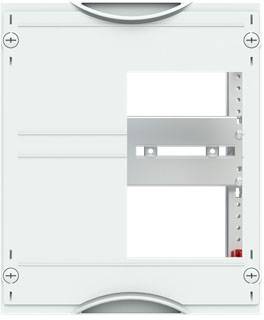

Striebel & John 2CPX042452R9999 MBT135 fuse switch disconnector module 2RE / BH000, 1FB, empty module without devices Fu
Product type
Fuse disconnect switch
Compatible with (details)
NH00
Dim
(W x H x D) 250 x 300 x 200 mm
Nominal current
320 A
Nominal current - rounded value
320 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Rated current 320
- Size NH00:
- Height: 300
- Width 250
- Mounting type: Mounting plate
- With cover: Yes
- Number of poles: 3
- Depth: 200
- Number of LV HRC fuse disconnectors: 1
- Number of NH fuse bases: 0
- Neutral switching: No.
- Product type
Fuse disconnect switch
- Compatible with (details)
NH00
- Dim
(W x H x D) 250 x 300 x 200 mm
- Nominal current
320 A
- Nominal current - rounded value
320 A
- Content
1 pc(s)
- Width
250 mm
- Height
300 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2324859 Striebel & John 2CPX042452R9999 MBT135 fuse switch disconnector module 2RE / BH000, 1FB, empty module without devices Fu
User & Safety Instructions
User & Safety Instructions 2324859 Striebel & John 2CPX042452R9999 MBT135 fuse switch disconnector module 2RE / BH000, 1FB, empty module without devices Fu
Description
Interior fittings module, CombiLine, kit unassembled, for NH00 fuse switch disconnectors, field width 1 = 250 mm, 24 place units, unfitted for the installation of 1 NH00 NH fuse switch disconnectors, for 3-pole busbar system, rated current in max. 320 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, cover design: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
