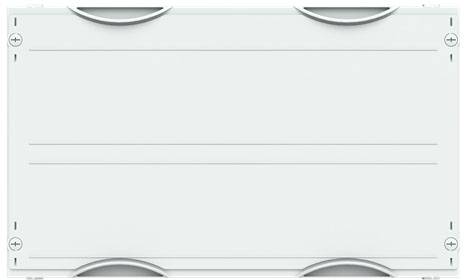

Striebel & John 2CPX042838R9999 MA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 4-pin 2
Product type
Switch module
Number of pins
4
Dim
(W x H x D) 500 x 300 x 215 mm
Nominal current
250 A
Nominal current - rounded value
250 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width: 500
- With cover: Yes
- Number of pins: 4
- Depth: 215
- Number of switches: 0
- Rated operating current 250
- Suitable for zero voltage switches: No.
- Suitable for switch: No.
- Plastic cover plate: Yes
- Fitted with switch disconnectors: No.
- Circuit breaker fitted: No.
- Equipped with zero voltage switch: No.
- Fitted with switch: No.
- With distributor terminals: Yes
- Suitable for switch disconnectors: No.
- Suitable for circuit breakers: Yes
- Product type
Switch module
- Number of pins
4
- Dim
(W x H x D) 500 x 300 x 215 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Content
1 pc(s)
- Width
500 mm
- Height
300 mm
- Depth
215 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325828 Striebel & John 2CPX042838R9999 MA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 4-pin 2
User & Safety Instructions
User & Safety Instructions 2325828 Striebel & John 2CPX042838R9999 MA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 4-pin 2
Description
Interior configuration module, CombiLine, installed in the cabinet, for Tmax circuit breakers, 2 RE latching unit = 300 mm, field width 2 = 500 mm, 48 mounting units, , usable width of 449 mm, unfitted for the installation of 2 XT2 circuit breakers, for 4-pole busbar system, rated current in max. 250 A, plastic covers, 90 degree pressure-twist lock, RAL 7035, design of the cover: Closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
