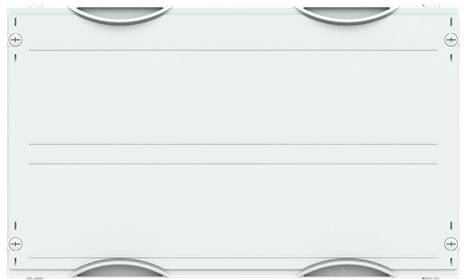

Striebel & John 2CPX042842R9999 MBA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 250 A
Product type
Switch module
Dim
(W x H x D) 500 x 300 x 215 mm
Nominal current
250 A
Nominal current - rounded value
250 A
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 300
- Width: 500
- With cover: Yes
- Number of pins: -
- Depth: 215
- Number of switches: 0
- Rated operating current 250
- Suitable for zero voltage switches: No.
- Suitable for switch: No.
- Plastic cover plate: Yes
- Fitted with switch disconnectors: No.
- Circuit breaker fitted: No.
- Equipped with zero voltage switch: No.
- Fitted with switch: No.
- With distributor terminals: Yes
- Suitable for switch disconnectors: No.
- Suitable for circuit breakers: Yes
- Product type
Switch module
- Dim
(W x H x D) 500 x 300 x 215 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Content
1 pc(s)
- Width
500 mm
- Height
300 mm
- Depth
215 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2325420 Striebel & John 2CPX042842R9999 MBA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 250 A
User & Safety Instructions
User & Safety Instructions 2325420 Striebel & John 2CPX042842R9999 MBA291T Tmax switch module XT2 2RE / 2FB, for Tmax circuit breakers Switch module 250 A
Description
Interior fitting module, CombiLine, kit unassembled, for Tmax circuit breakers, 2 RE = 300 mm detent unit, field width 2 = 500 mm, 48 place units, , usable width of 240 mm, unfitted for the installation of 1 XT2 circuit breaker, for busbar system poles, rated current in max. 250 A, covers made of plastic, 90 degree pressure-twist-lock, RAL 7035, cover design: Closed, can be used from a cabinet depth of 215 mm, EDF or WR mounting frame must be ordered separately
