Striebel & John 2CPX042908R9999 MBA196T Switch 250 A
EAN:
Part number:
Item no:
Product type
Switch
Number of pins
4
Nominal current - rounded value
250 A
Nominal current
250 A
Dim
(W x H x D) 250 x 450 x 200 mm
Datasheet (PDF)
Technical specifications
- Product type
Switch
- Number of pins
4
- Nominal current - rounded value
250 A
- Nominal current
250 A
- Dim
(W x H x D) 250 x 450 x 200 mm
- Content
1 pc(s)
- Width
250 mm
- Height
450 mm
- Depth
200 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2330348 Striebel & John 2CPX042908R9999 MBA196T Switch 250 A
User & Safety Instructions
User & Safety Instructions 2330348 Striebel & John 2CPX042908R9999 MBA196T Switch 250 A
Description

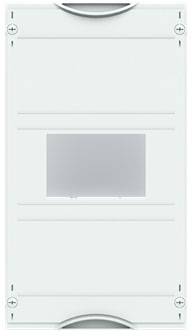

Interior fitting module, CombiLine, kit unassembled, for Tmax circuit breakers, 3 RE = 450 mm detent unit, field width 1 = 250 mm, 36 space units, , usable width of 140 mm, unfitted for the installation of 1 XT4 circuit breaker, for busbar system poles, rated current in max. 250 A, covers made of plastic, 90 degree pressure-twist lock, RAL 7035, cover design: With cut-out, can be used from a cabinet depth of 200 mm, EDF or WR mounting frame must be ordered separately
